Able to setup in tight quarters

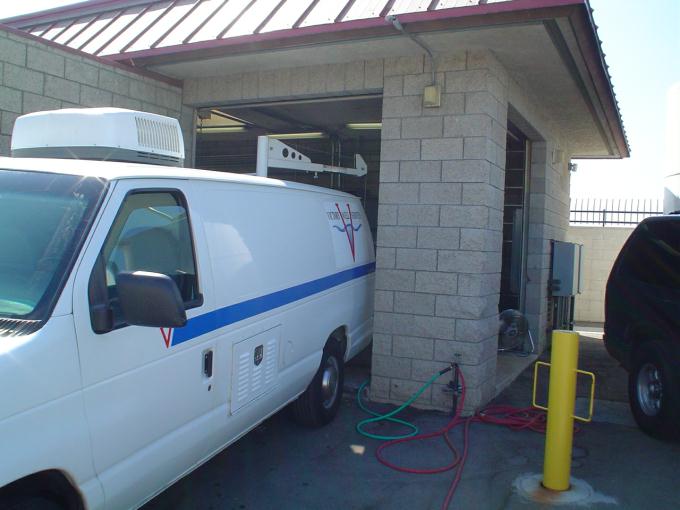

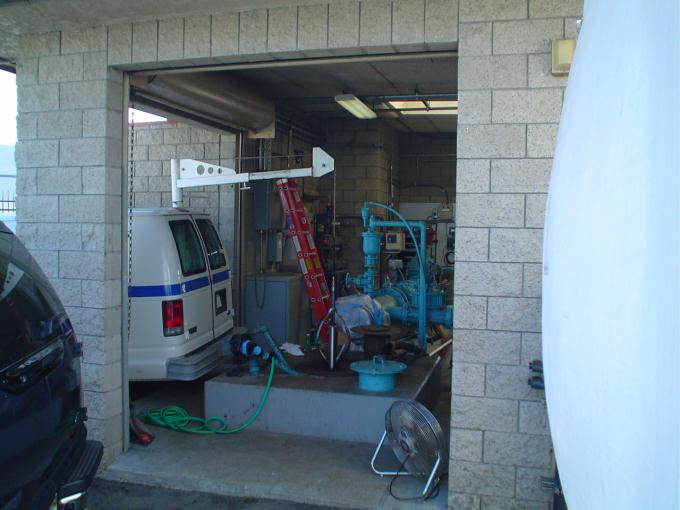

Well Video inside of well house

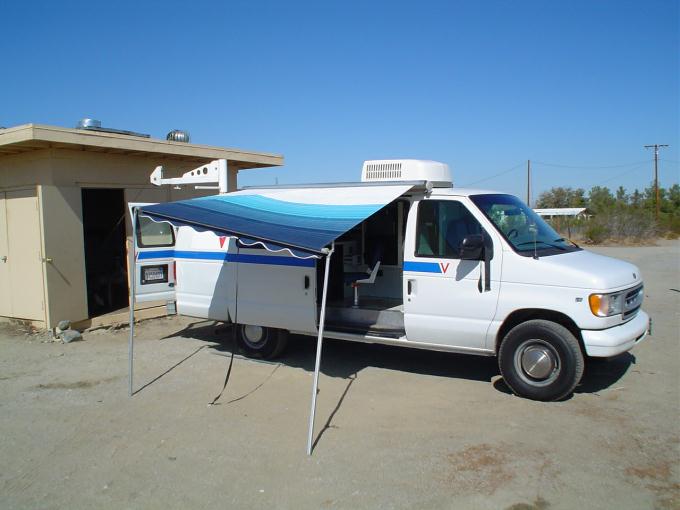

Canopy for weather protection and sun shade (keeping the client cool and dry)

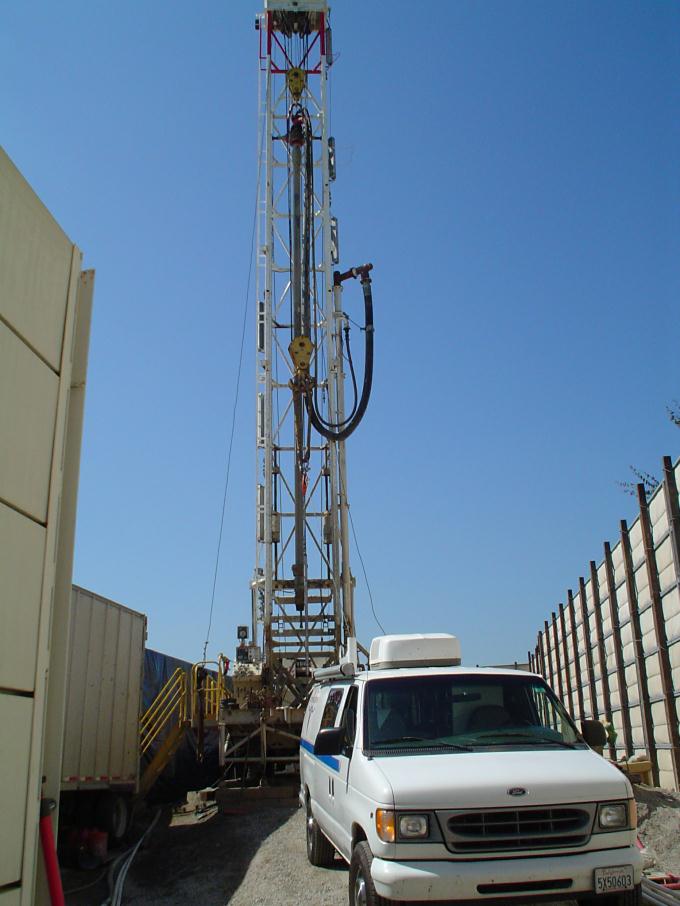

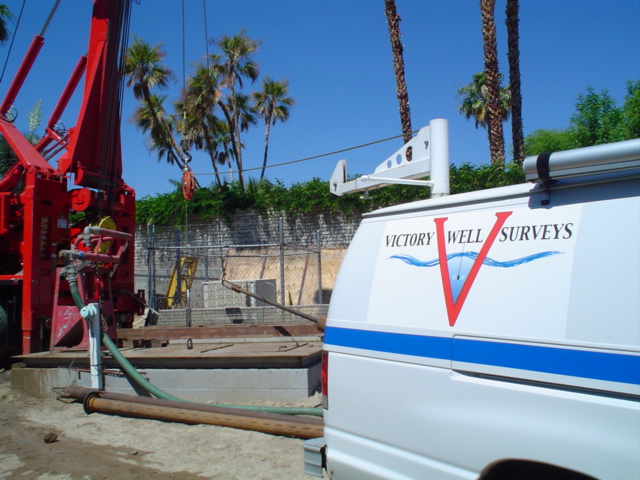

Running geophysical logs on mud borehole

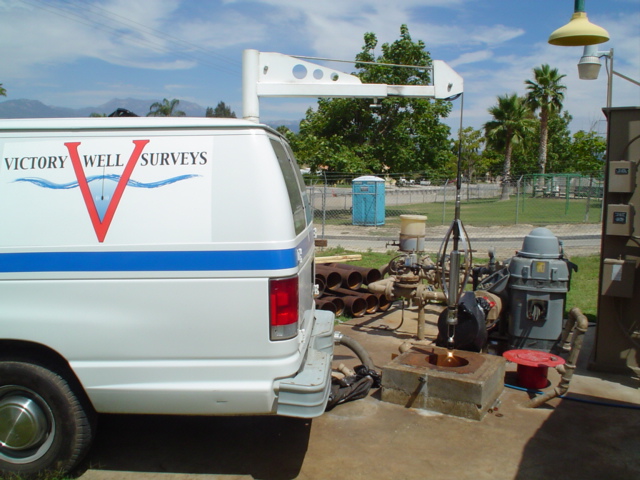

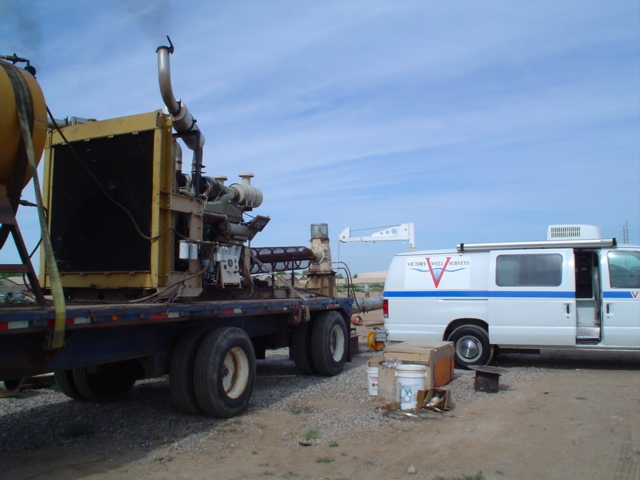

Running Flowmeter Log while well is being pumped.

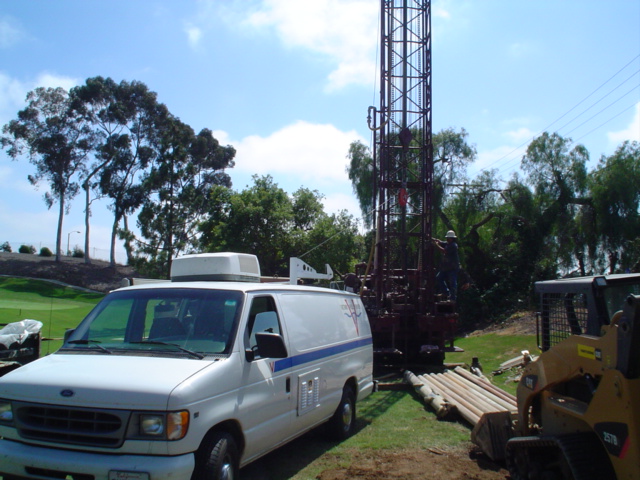

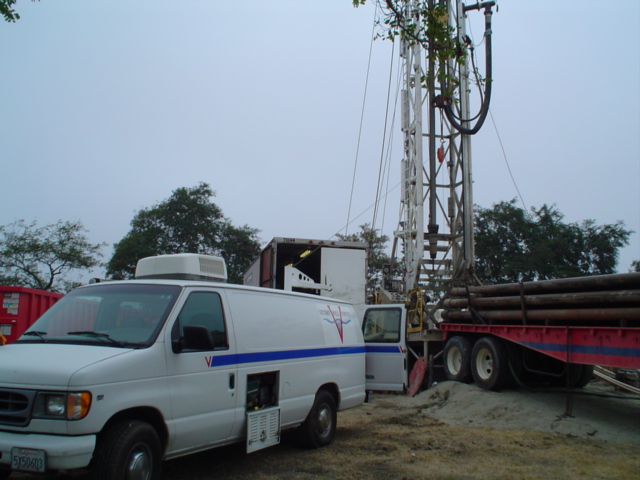

Running geophysical logs
Running geophysical logs
Video Camera prepared for well survey.
Decontaminating Depth Specific Fluid Sampler in preparation to collect water sample while well pump is running.

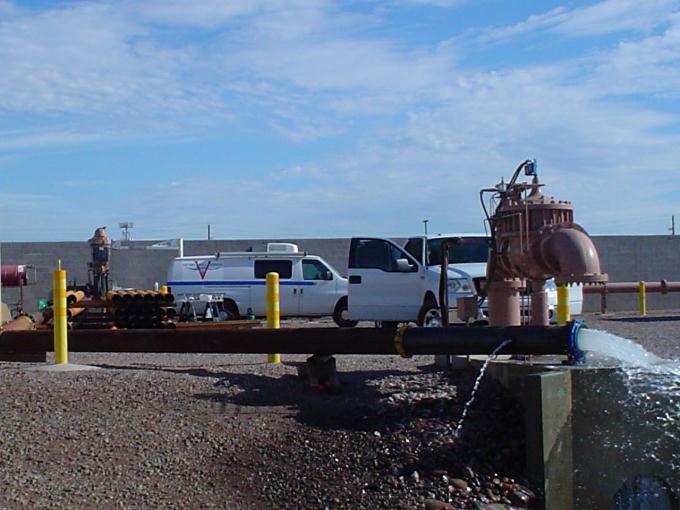

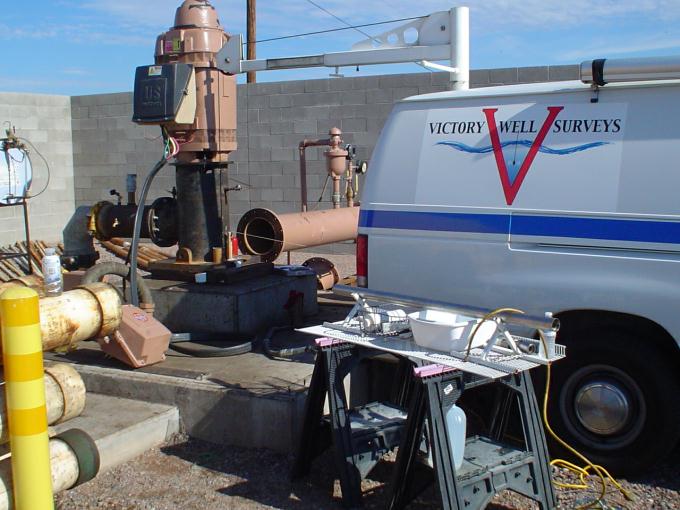

Running production logs and collecting water samples while well pump is running.

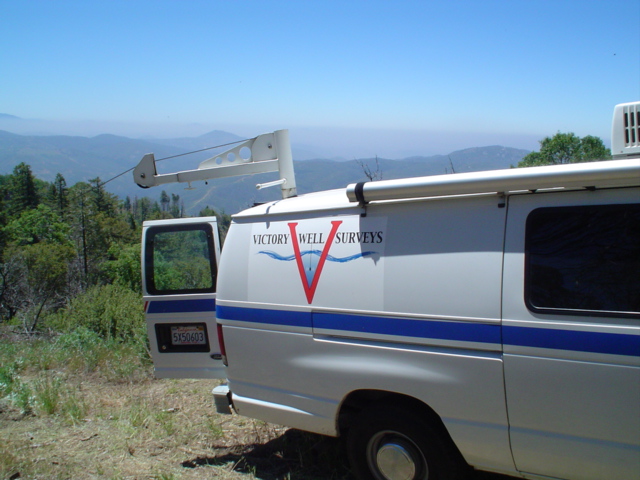

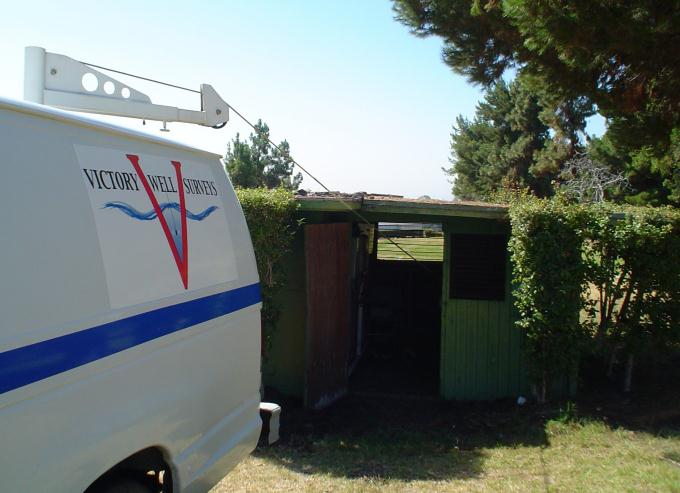

Sometimes the well is in a strange location. (We can always find a way to get the job done)
Sometimes the well is difficult to access. (We can always find a way to get the job done)
Running geophysical logs in tight location

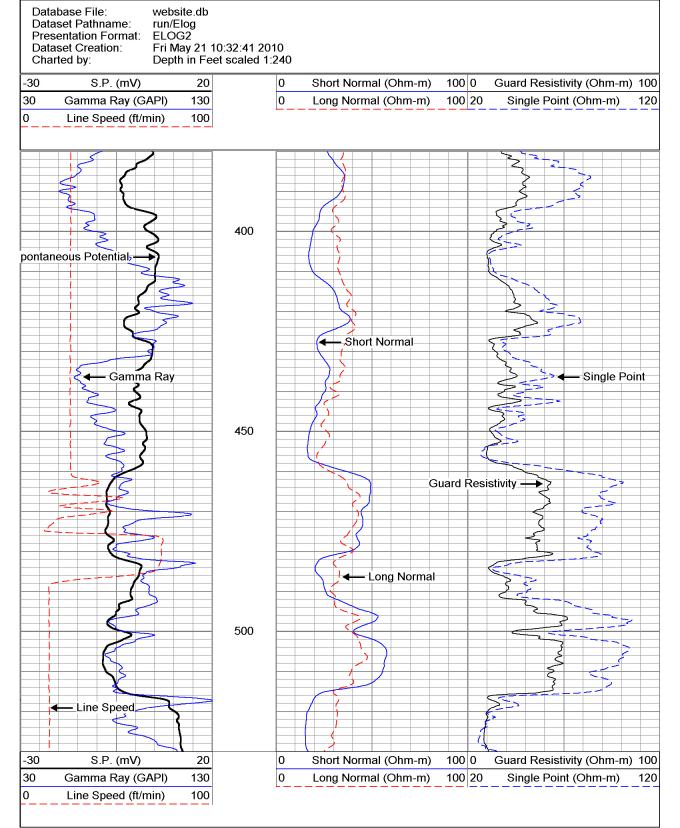

Section of common Electric Log presentation. Log used to determine formation lithology (ie; sand, clay, gravel). (Includes; Spontaneous Potential, Gamma Ray, Short Normal Resistivity, Long Normel Resistivity, Single Point Resistance, Guard Resistivity, Line Speed)

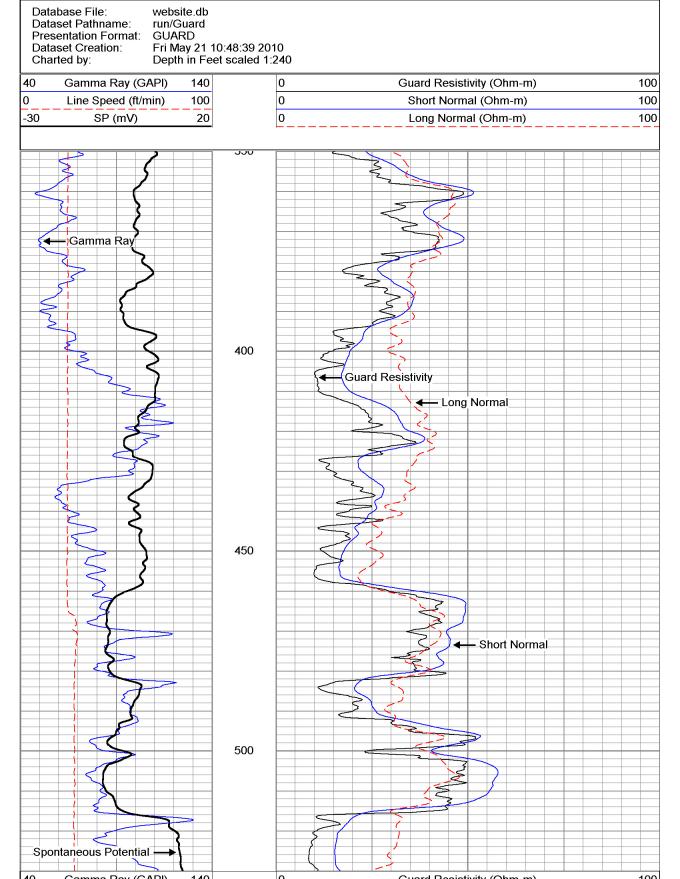

Section of common Guard Resistivity Log presentation. Log used to determine formation bed boundries and to distinguish thin beds. (Includes; Short Normal Resistivity, Long Normal Resistivity, Guard Resisitivity, Gamma Ray, Spontanious Potential, Line Speed)

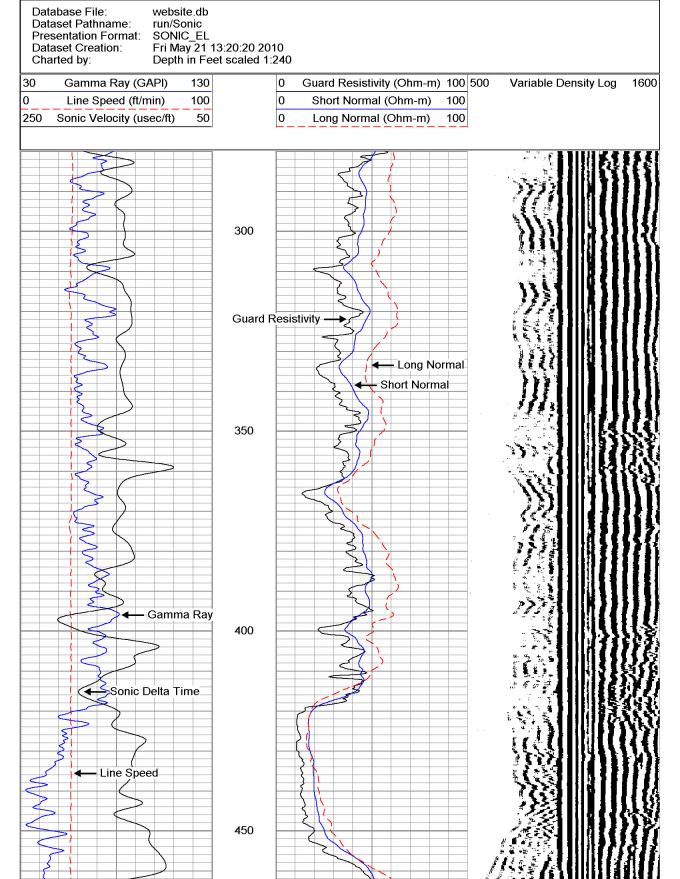

Section of common Sonic Log presentation. Log used to determine formation water saturation, regional water levels, formation properties and fractures. (Includes Variable Density Waveform, Sonic Velocity, Short Normal Resistivity, Long Normal Resistivity, Guard Resistivity, Gamma Ray, Line Speed)
Section of common open hole Caliper Log presentation. (Includes; Average Borehole Diameter, Bit Size Reference Line, Annular Borehole Volume Calculation, Total Borehole Volume Calculation, Diagram of proposed Casing/Screen Schedule, Line Speed)

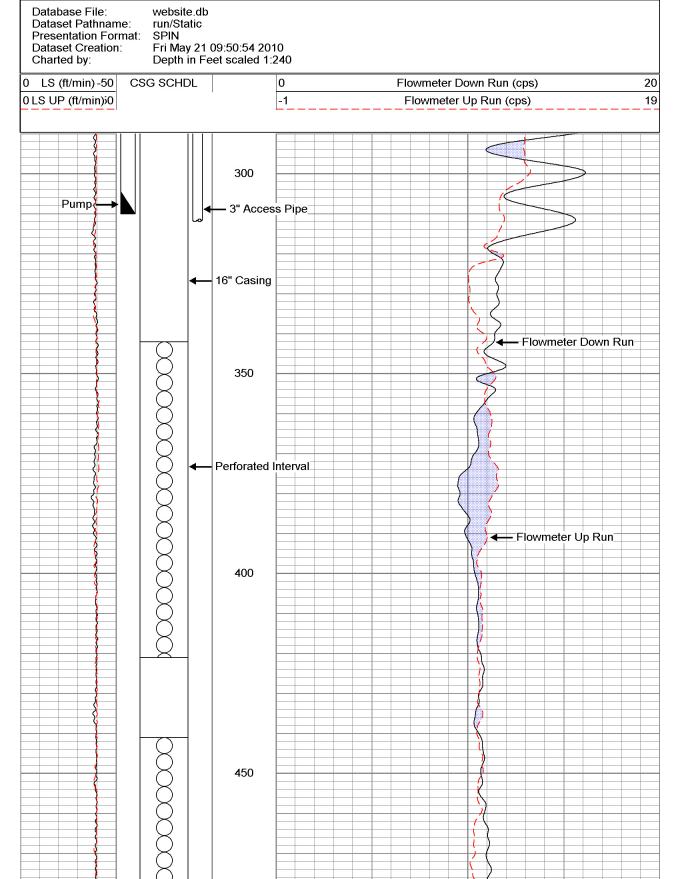

Section of common Flowmeter Log presentation run under Static (non-pumping) condition. Log helps determine if water in the well is flowing and if so, whether it's moving up-hole or down-hole. (Includes Down Run, Up Run, Line Speed, and well casing/perforation sketch)
Section of common Flowmeter Log presentation run under Dynamic (pumping) condition. Log shows profile of production contribution from top to bottom logged interval. (Includes 3 Down Runs, Line Speeds, Differential Flowmeter, and well casing/perforation sketch)

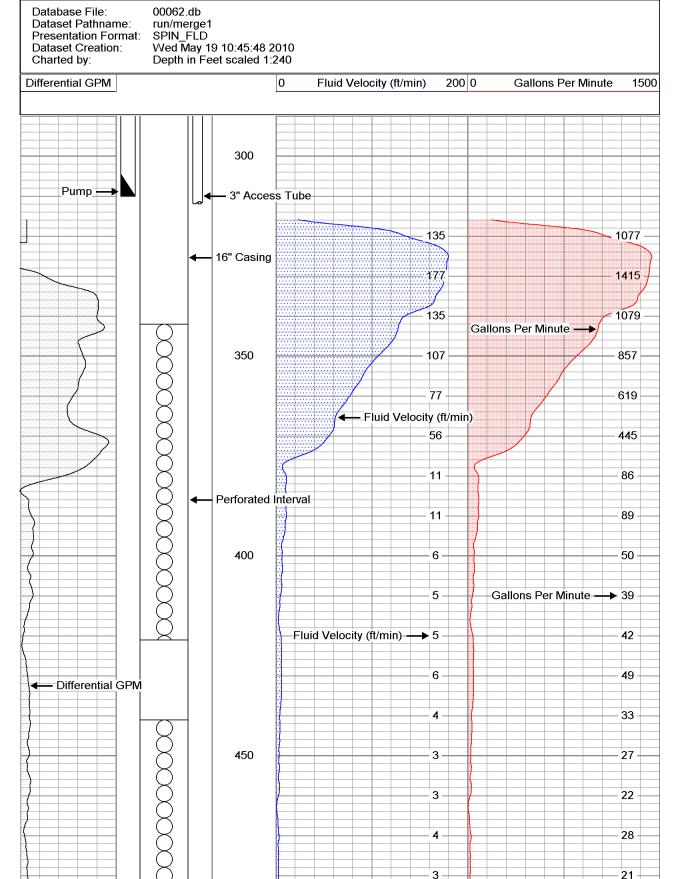

Section of common Flowmeter Analysis Log presentation. Data is derived from Dynamic Flowmeter Log data. Log shows production profile in Fluid Velocity and GPM. (Includes Fluid Velocity, GPM, Differential GPM, and well casing/perforation sketch) (Also includes Analysis Page 2 and Page 3)

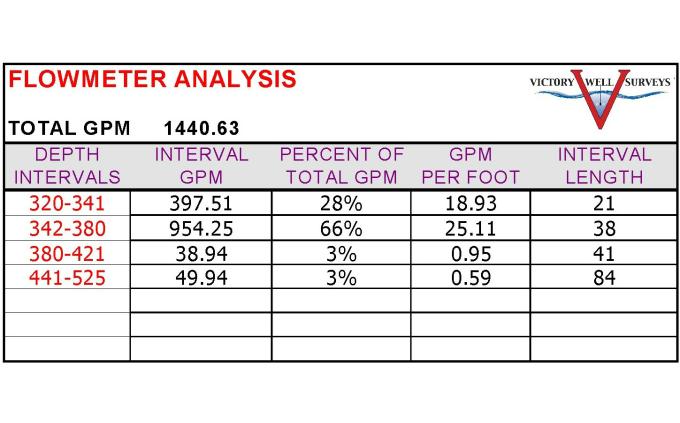

Page two of Flowmeter Analysis Log. Table shows production details for intervals of interest.

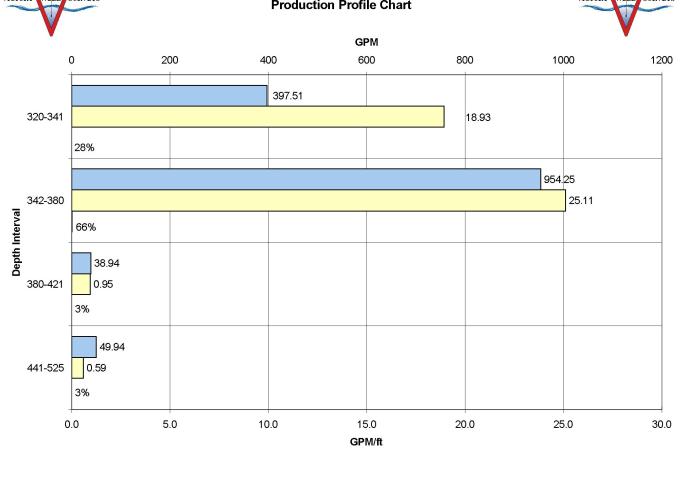

Page three of Flowmeter Analysis Log. Bar Chart shows production details for intervals of interest.
Plan View Plot of Deviation Survey data. Plot displays azimuth and inclination. Magnetometer used for azimuth and tiltmeter used for inclination.
Vertical Cross Section Plot of Deviation Survey data. Plot displays azimuth and inclination. Magnetometer used for azimuth and tiltmeter used for inclination.

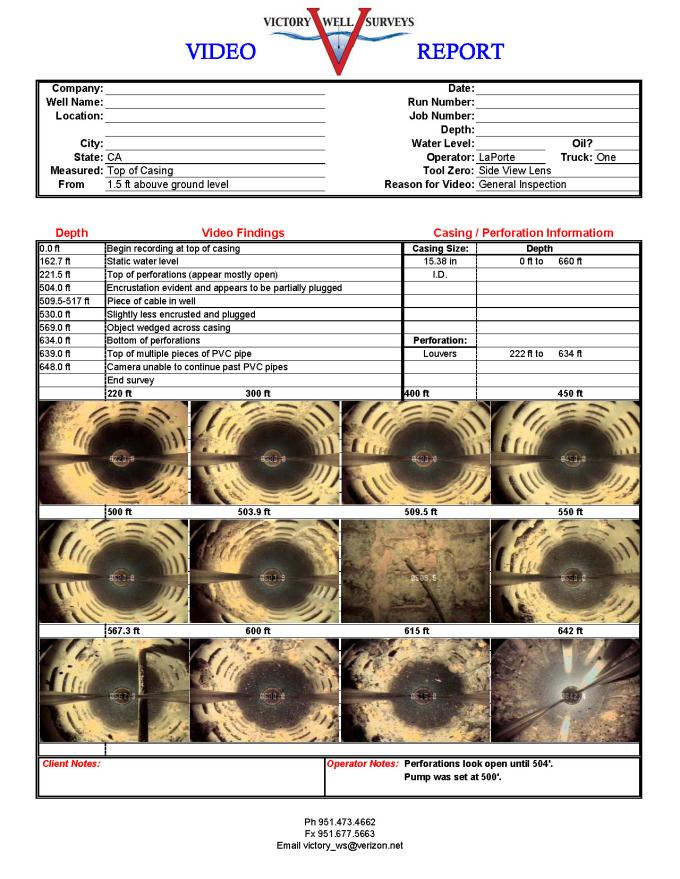

Common Video Survey Report (Includes all pertinent well information, Notes and Observations, Selected Still Photographs) (up to three printed at the well site on high quality photo paper)

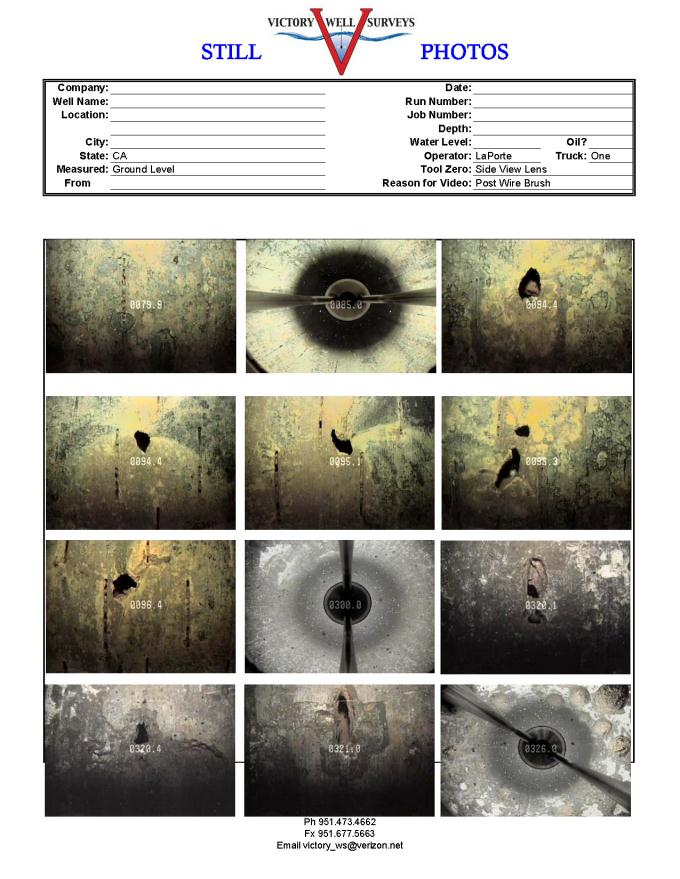

Page two of common Video Survey Report (Includes all pertinent well information, Selected still photographs too numerous to fit on main page of report)

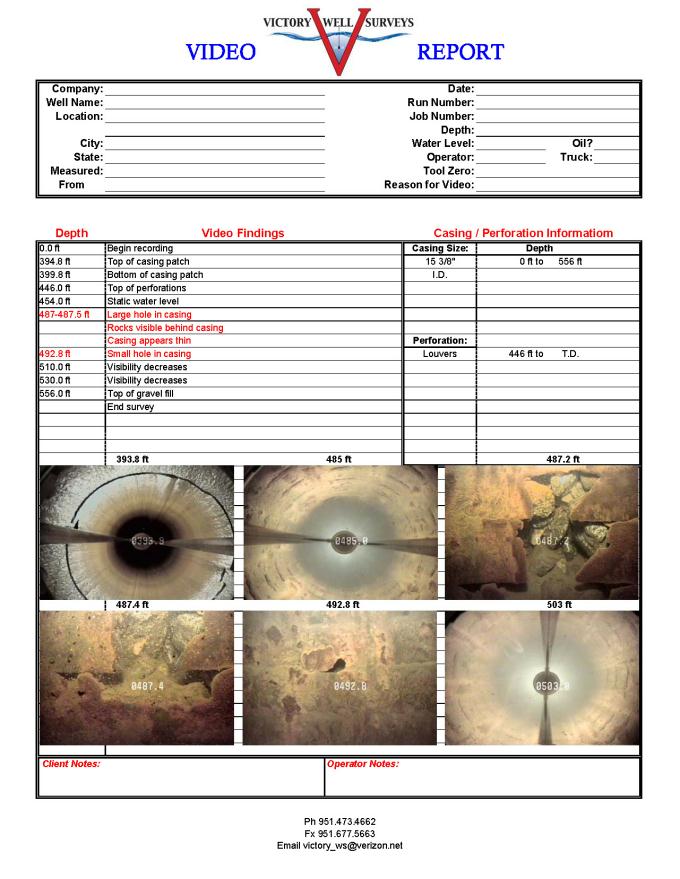

Common Video Survey Report shows Ful-Flo Louver perforations become more plugged as well depth increases.

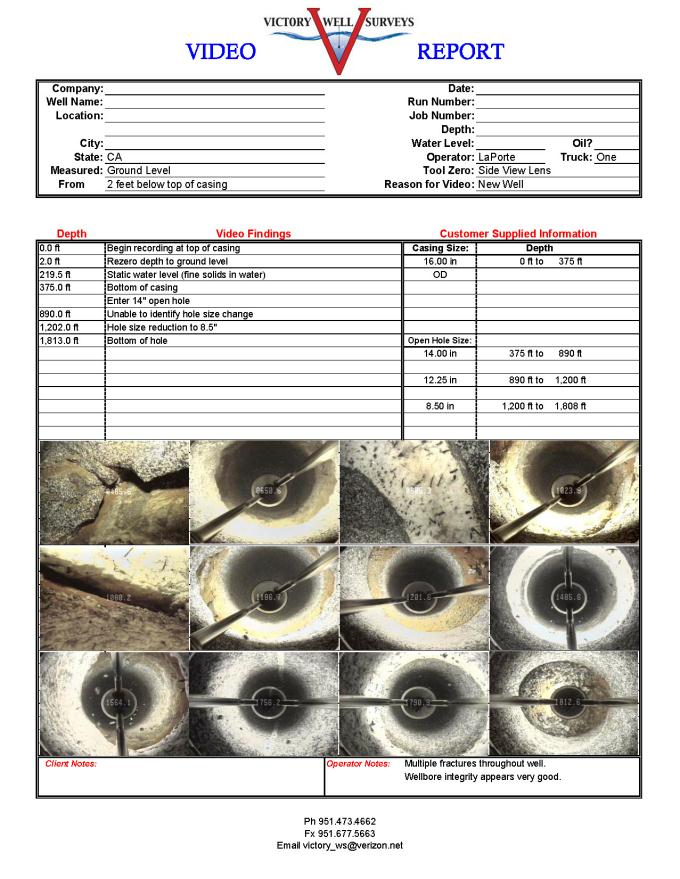

Common Video Survey Report performed on open borehole well (no casing in borehole). Shows wellbore integrity and formation fractures
Well Site Pictures
click on thumbnail to enlarge
Example Well Logs and Well Video Reports
click on thumbnail to enlarge
Services offered at this time:

 Electric Log/Gamma Ray                                        (SP, 16”, 64”, Single Point, GR)

 Guard Resistivity                                                               (Focused Resistivity)

 Gamma Ray Log                                                       (Natural Gamma Radiation)

 Sonic Velocity Log                                                (Variable Density, Travel Time)

 Caliper Log                                                          (Borehole Diameter, Volume Calculations)

 Deviation Survey                                            (Inclination, Azimuth, plan & vertical plot)

 Temperature Log                                             (Gradient Curve, Differential Curve)

 Fluid Resistivity Log                                       (Gradient Curve, Differential Curve)

 Flowmeter Log                                      (Line Speed, Counts per Second, Production Analysis)

 Flowmeter Analysis Log                                     (GPM & Fluid Velocity)

 Cement Bond Log                                        (% of Bonding, Variable Density, Amplitude)

 Depth Specific Water Sample                             (up to two liter per sample)
                                                                             (multiple diameters & volumes available)

 Full Color Video Survey                              (360 degree Rotating axial & side view)
                                                                              (Up to three DVDs & Color Reports)
                                                                            (multiple camera diameters available)

Special application sondes and cameras
can be rented by Victory Well Surveys
for your specific needs
Contact to inquire
